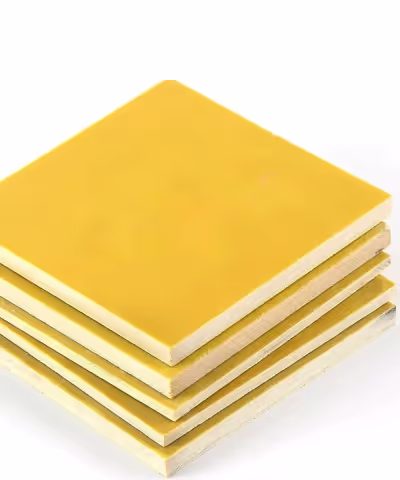

FR4 Glass Epoxy Sheets
FR4 Glass Epoxy Sheets are flame-retardant laminates made from woven fiberglass cloth impregnated with epoxy resin, offering excellent electrical insulation, mechanical strength, and moisture resistance. With a UL94 V-0 flame rating and thermal endurance up to 130°C, FR4 is widely used in slot packing insulation for HT motors, temperature washers in lifting magnets, and structural components in control panels and switchgear. Its balance of dielectric performance and flame resistance makes it ideal for electrical, electronic, and industrial insulation applications.
G10 Glass Epoxy Sheets
G10 Glass Epoxy Sheets are high-strength, non-flame-retardant laminates composed of glass cloth and epoxy resin, valued for their exceptional rigidity, dimensional stability, and electrical insulation. Suitable for use up to 130°C, G10 is commonly applied in temperature washers, insulating spacers, gaskets, and slot liners in motors and machinery. Its strong mechanical properties and low moisture absorption make it a preferred material in industrial, mechanical, and defense-related applications.
G11 Glass Epoxy Sheets
G11 Glass Epoxy Sheets are high-temperature, flame-retardant laminates designed for advanced electrical and thermal performance. Built from epoxy-impregnated glass fabric, G11 can withstand continuous operating temperatures up to 180°C while providing superior dielectric strength and arc resistance. Ideal for slot insulation in HT motors, high-voltage equipment, and thermal washers in lifting magnets, G11 is widely used in aerospace, power generation, and high-heat industrial environments where stability under extreme conditions is critical.
Engineered for Excellence & Reliability
Premium Glass Epoxy, Bakelite, and FRP Sheets
These Glass Epoxy based laminates and components are engineered to meet stringent industry standards, offering a combination of electrical insulation, mechanical strength, and thermal resistance. Whether used in transformers, motors, batteries, circuit boards, electrical machinery, or structural components, they contribute to the reliability and efficiency of diverse applications across industries.
...
Fiberglass Braided Cables
Fiberglass PTFE Cables
Fiberglass Heater / Sensor Cables
Fiberglass Mica Cables
Fiberglass Braided Silicone Cables
Teflon Insulated Cables
Silicone Rubber Cables
DMD / DMDD Cables
Bunched Bare / Tinned Copper Conductors
FR4 Glass Epoxy Sheets, G10 Glass Epoxy Sheets, G11 Glass Epoxy Sheets
.avif)
Description
Product DEtails
Brand
FPC Insulations
Temperature Rang(°C)
130 °C
Color
Yellow
Thickness (mm)
0.50 to 100 mm
Surface
Smooth & Glossy
Sizes
1000 x 2000 mm or 1220 x 2440 mm
Key Features
High mechanical strength
Excellent electrical properties
Flame retardant
Benefits
Reliable performance
Versatile usage
Cost-effective solution
Fiberglass Braided Cables
Fiberglass PTFE Cables
Fiberglass Heater / Sensor Cables
Fiberglass Mica Cables
Fiberglass Braided Silicone Cables
Teflon Insulated Cables
Silicone Rubber Cables
DMD / DMDD Cables
Bunched Bare / Tinned Copper Conductors
3240 Glass Epoxy Sheets
.avif)
Description
This laminated product is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy phenolic resin. It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical/electrical equipment, as well as used under damp environmental conditions and transformer oil.
Product DEtails
Brand
FPC Insulations
Temperature Rang(°C)
130 °C
Color
Yellow
Thickness (mm)
0.50 to 180 mm
Surface
Smooth & Glossy
Sizes
1000 x 2000 or 1220 x 2440 mm
Key Features
Thermal stability
High mechanical strength
Good electrical properties
Applications
[1.0]
.avif)
Industrial heating
[2.0]
.avif)
Industrial heating
Benefits
Consistent performance
Suitable for various environments
High-quality insulation
Fiberglass Braided Cables
Fiberglass PTFE Cables
Fiberglass Heater / Sensor Cables
Fiberglass Mica Cables
Fiberglass Braided Silicone Cables
Teflon Insulated Cables
Silicone Rubber Cables
DMD / DMDD Cables
Bunched Bare / Tinned Copper Conductors
Glass Epoxy Wedges and Profiles
.avif)
Description
We specialize in supplying high-quality Fiberglass Epoxy Profiles tailored for electrical insulation in diverse applications within the electrical industry. Our extensive range includes FRP Tubes, Rods, Threaded Rods, Dog Bones, Corner Angles, Flats, and structural tubes, all meticulously crafted for superior performance.
Specifically designed for use in transformers, our FRP Epoxy Pultruded Profiles, such as Dogbones, Hats, Corners, Flats, Tubes, and Threaded Rods, play integral roles in applications like transformer spacer sticks, standoff insulators, structural supports, and tension members.
The profiles, available in both "F" and "H" Class Insulation, are epoxy resin-based, ensuring optimal electrical insulation properties. Notable applications include transformer components, where FRP Tubes, Threaded Rods, Studs, and Nuts contribute to enhanced electrical insulation.
Our FRP Corner Angles, Threaded Rods, Studs, and Nuts are thoughtfully designed to provide superior electrical insulation, making them essential components for various electrical applications. Choose our FRP Epoxy Pultruded Profiles for reliability, durability, and high-performance electrical insulation in demanding environments.
Specifically designed for use in transformers, our FRP Epoxy Pultruded Profiles, such as Dogbones, Hats, Corners, Flats, Tubes, and Threaded Rods, play integral roles in applications like transformer spacer sticks, standoff insulators, structural supports, and tension members.
The profiles, available in both "F" and "H" Class Insulation, are epoxy resin-based, ensuring optimal electrical insulation properties. Notable applications include transformer components, where FRP Tubes, Threaded Rods, Studs, and Nuts contribute to enhanced electrical insulation.
Our FRP Corner Angles, Threaded Rods, Studs, and Nuts are thoughtfully designed to provide superior electrical insulation, making them essential components for various electrical applications. Choose our FRP Epoxy Pultruded Profiles for reliability, durability, and high-performance electrical insulation in demanding environments.
Key Features
Customizable shapes and sizes
High mechanical strength
Excellent dielectric properties
Applications
[1.0]
Industrial heating
[2.0]
Industrial heating
Benefits
Tailored solutions
Reliable performance
Optimal fit for various applications
Fiberglass Braided Cables
Fiberglass PTFE Cables
Fiberglass Heater / Sensor Cables
Fiberglass Mica Cables
Fiberglass Braided Silicone Cables
Teflon Insulated Cables
Silicone Rubber Cables
DMD / DMDD Cables
Bunched Bare / Tinned Copper Conductors
Bakelite Sheets and Components Key
.avif)
Description
Bakelite Sheets and Components designed for electrical insulation are made of phenolic resin and fabric or paper, exhibit superior mechanical properties, water and heat resistance, and enhanced dielectric stability even after soaking. With a thermal temperature rating of 150 and thickness options ranging from 0.8 to 60 mm. The density ranges from 1.30 to 1.45g/cm3, with a standard width of 1020mm and a length of 2040mm.
Our Bakelite offerings are tailored for various electrical insulation needs, providing reliable performance in demanding environments. Ideal for insulating structural components in electric machines, apparatus equipment, and oil transformers, these Bakelite sheets ensure long-lasting durability and consistent electrical insulation.
Our Bakelite offerings are tailored for various electrical insulation needs, providing reliable performance in demanding environments. Ideal for insulating structural components in electric machines, apparatus equipment, and oil transformers, these Bakelite sheets ensure long-lasting durability and consistent electrical insulation.
Product DEtails
Brand
FPC Insulations
Temperature Rang(°C)
155 °C
Color
Brown
Thickness (mm)
0.80 to 60 mm
Surface
Smooth
Sizes
1020 x 2040 mm (Can be cut to size)
Sizes
1000 x 2000 mm
Key Features
High mechanical strength
Excellent thermal resistance
Good electrical insulation
Applications
[1.0]
Industrial heating
[2.0]
Industrial heating
Benefits
Durable and robust
Heat resistant
Versatile application
Fiberglass Braided Cables
Fiberglass PTFE Cables
Fiberglass Heater / Sensor Cables
Fiberglass Mica Cables
Fiberglass Braided Silicone Cables
Teflon Insulated Cables
Silicone Rubber Cables
DMD / DMDD Cables
Bunched Bare / Tinned Copper Conductors
FRP Sheets and Components
.avif)
Description
Electrical Grade FRP (Fiber Reinforced Plastic) Sheets, often used for electrical insulation, possess specific properties that make them suitable for various applications. It's important to note that the insulation class of these sheets may vary based on the specific formulation and manufacturer.
Product DEtails
Brand
FPC Insulations
Temperature Rang(°C)
155 °C
Color
White/ Green / Red / Yellow
Thickness (mm)
0.50 to 100 mm
Surface
Smooth
Key Features
Lightweight and strong
Corrosion-resistant
Good electrical properties
Applications
[1.0]
Industrial heating
[2.0]
Industrial heating
Benefits
Easy to handle and install
Long-lasting performance
Multi-purpose usage
